HER Heater Wall Mounting Bracket
This Wall Mounting Bracket is for easier installation of horizontal electric unit heaters where ceiling suspension is not feasible. Designed for use with Modine horizontal delivery models HER 50 through HER250. The bracket saves installation time with built-in wall clearance and provides an inexpensive and convenient wall-mounting method. The one-point suspension permits swiveling the unit 180 degrees horizontally for most effective air direction.
Note: Heater sold separately.
Application
Regular Bracket: for use with model HER50 through HER150 Modine electric unit heaters.
Heavy-Duty Bracket: for use with model HER200 through HER250 Modine electric heaters.

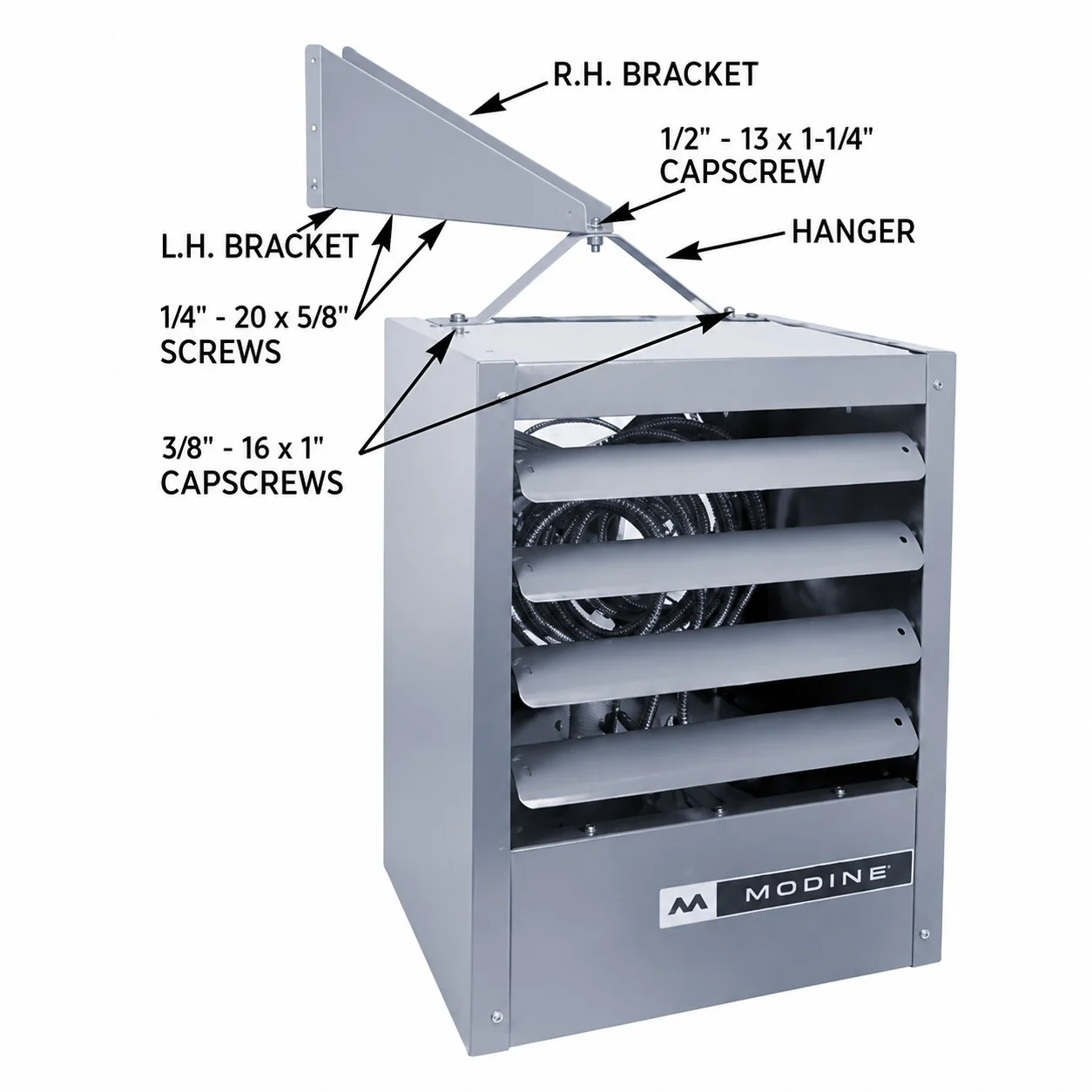

Mounting Instructions
- Assemble L.H. side bracket to R.H. side bracket and fasten with 1/4"- 20 x 5/8" screws to weldnuts inside R.H. side bracket. Securely fasten this assembly to wall, as shown. Wall fasteners must be furnished by the installer.
- Fasten hanger to top of unit heater with two 3/8" - 16 X 1" capscrews.
- Raise unit into position and fasten hanger to wall bracket with 1/2" - 13 X 1-1/4" capscrew and washer. Swivel unit heater to desired position before tightening capscrew.
Additional Information:
HER Heater Wall Mounting Bracket Instructions (PDF)
