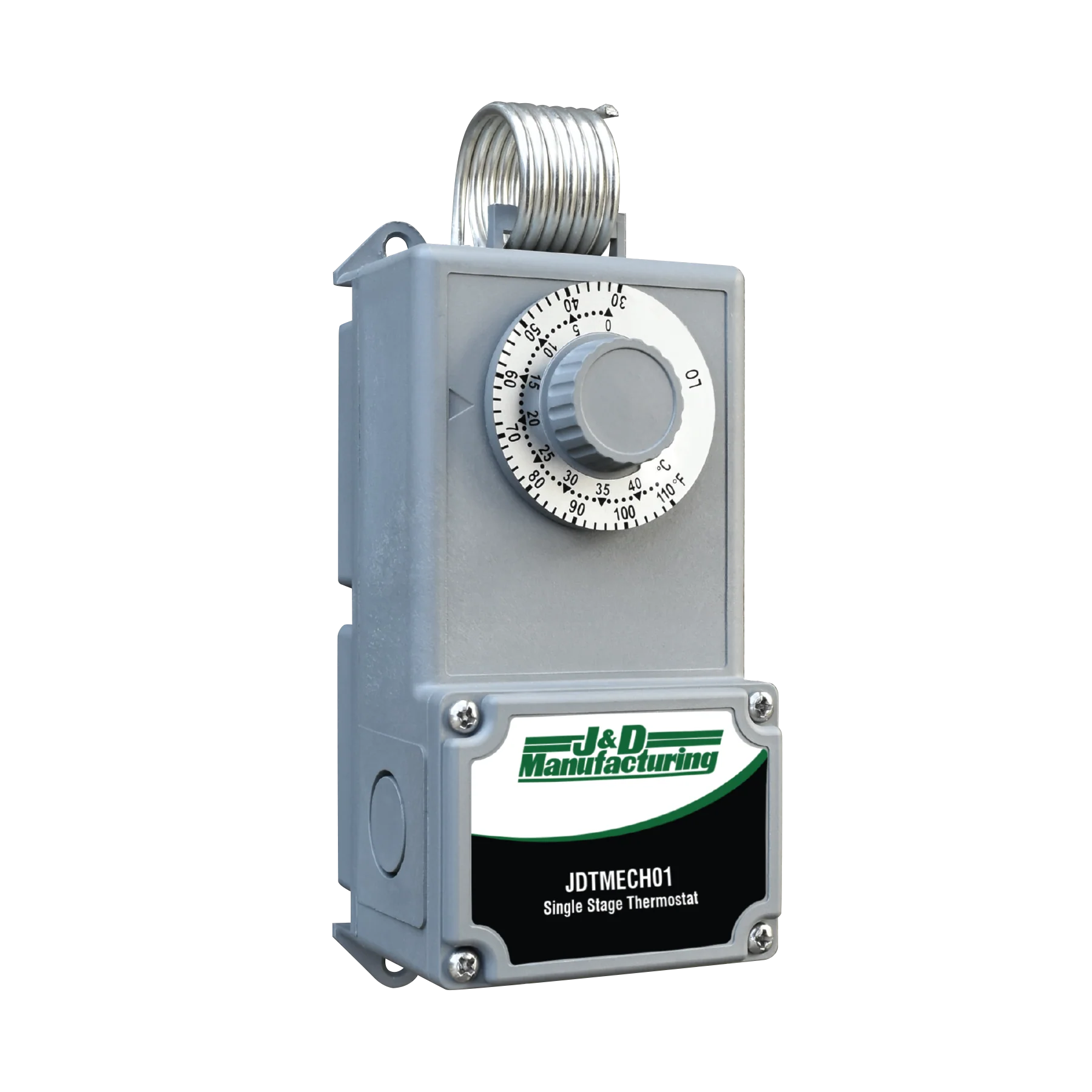

J&D Single Stage Thermostat

The JDTMECH single stage thermostats can be used for heating or cooling. The rugged NEMA 4X rated weather resistant enclosure is made of corrosion resistant materials for a long life. Temperature range 30° - 110°F. Available hardwired or with optional piggy back cord. Note: This is a replacement for the VC115 series controls.

• Rugged Nema 4X rated weather resistant enclosure made of corrosion resistant materials for long life
• Low mass, high surface area of stainless steel coiled sensor provides rapid response to temperature change
• Underwriters Laboratories (UL) listed and CSA certified
• Single stage thermostat to control your circulation or exhaust fan, power shutter, heater or heat lamp
• Large, visible dial with 30° - 110°F temperature range
• 3°F (1.3°C) differential
• JDTMECH01: Thermostat, single stage, 120/208/240V, 50/60Hz, NEMA 4x
• JDTMECH01-C: Thermostat, single stage, 120V, 60Hz, NEMA 4x, w/ 8' cord

Installation and Wiring Instructions

JDTMECH Thermostat Installation and Wiring Instructions (PDF)
